Stainless Steel Mesh Screen

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Piece/Pieces
Delivery Time: 15 Days

Basic Info

Model No.: HHY-SS

Material: SUS304

Hole Shape: Square

Application: Filter, Construction Wire Mesh, Protecting Mesh, Decorative Mesh, Screen, Fence Mesh, Barbecue Wire Mesh, Window Curtain, Cages

Type: Stainless Steel Crimped Wire Mesh

Material Type: Stainless Steel Wire

Weave Technique: Plain Weave

Wire Mesh Width: 1.2m

Technique: Woven

Nickels: 8%

Certification: ISO9001, SGS

More Material Can Be Choose: SS304,3316,SS304L,SS316L,SS430 Etc

Wire Diameter: This Can Be Customized

Weaving Style: Customized

Opening Type: Square, Slotted Or Customized

Additional Info

Packaging: pallet or as require

Productivity: 1X20' container/2 week

Brand: HHY

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: 1X20' container/10days

Certificate: ISO9001:2008

Port: TIANJIN

Product Description

Stainless steel mesh screen

Stainless steel mesh screen is a type of screen mesh stainless steel, such as the SS304 screen mesh, it is woven by crimped wire mesh machine with pre-crimped steel wires, it can be stainless steel 304 grade, 316 grade, 304L grade and 316L grade or 430 grade, all can be customized. this stainless steel screen mesh can be customized for the wire diameter, aperture size, panel type and weaving style etc.

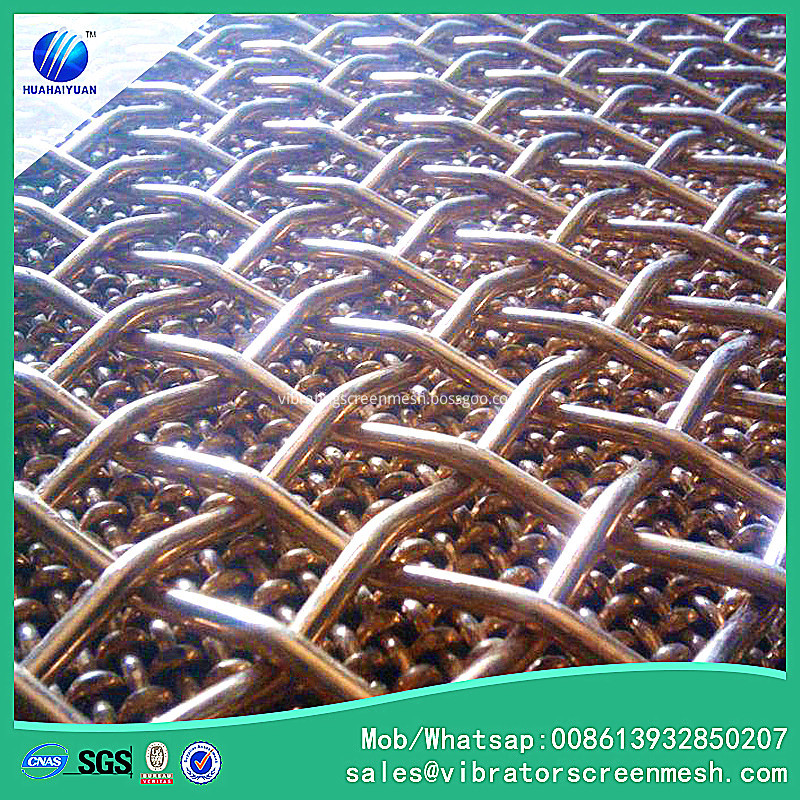

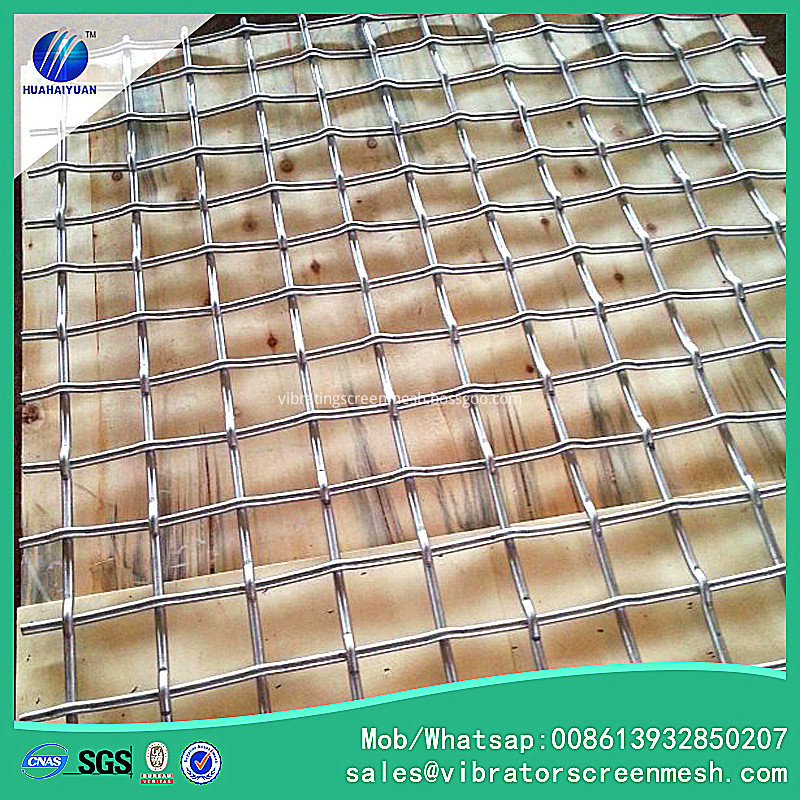

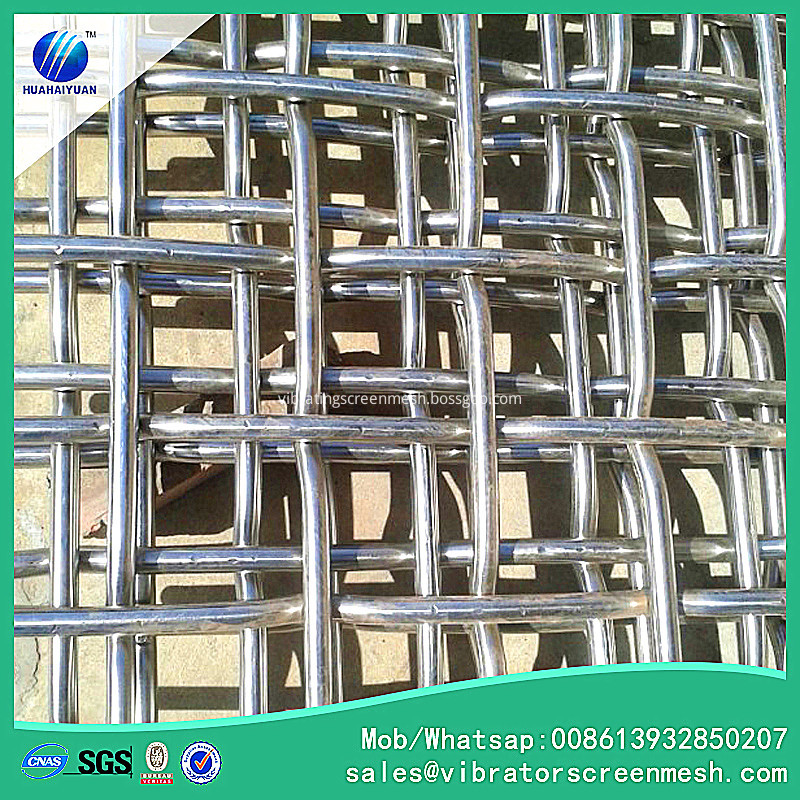

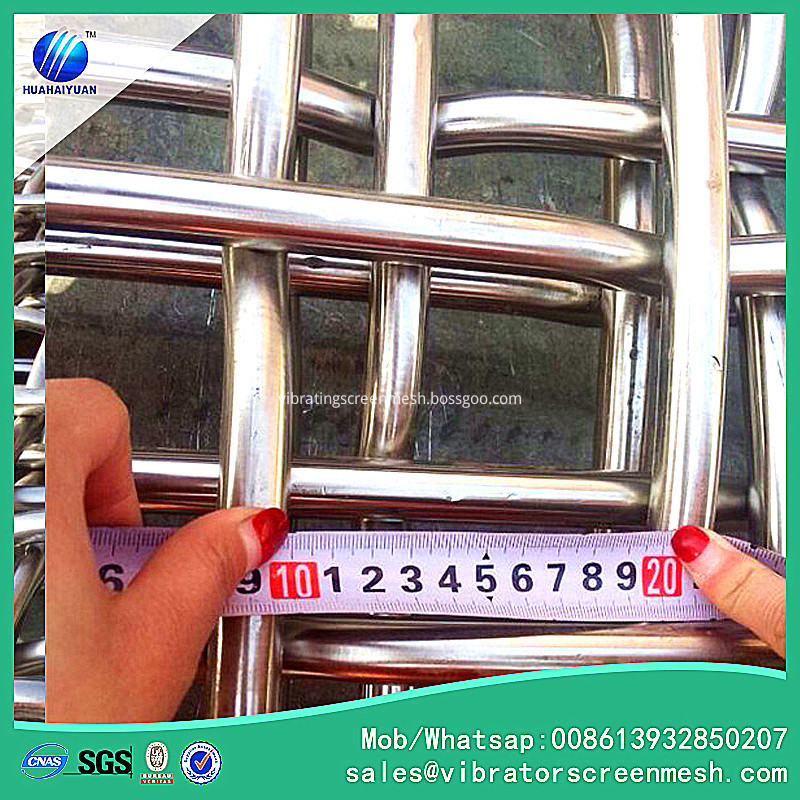

Stainless Steel Mesh ScreenStainless Steel Mesh ScreenStainless Steel Mesh ScreenStainless Steel Mesh Screen

Below are the weaving types for stainless steel mesh screens.

Plain Weave

The Plain Wire Cloth Weave is the most common wire cloth used and it is one of the simplest wire cloths. The plain wire cloth is not crimped before weaving, and each warp wire passes over/under the wires running through the cloth at 90 degree angles.

Twill Square Weave

Each warp and shute of the Twill Square Weave Wire Cloth, is woven alternately over two and under two warp wires. This gives the appearance of parallel diagonal lines, allowing the twill square weave wire cloth to be used with heavier wires with a particular mesh count (that is possible with the plain weave wire cloth). This ability allows the application of this wire cloth for greater loads and finer filtration.

Plain Dutch Weave

The Plain Dutch Weave Wire Cloth or wire filter cloth is woven the same way as the plain weave wire cloth. The exception of the plain dutch wire cloth weave is that the warp wires are heavier than the shute wires.

Twilled Dutch Weave

Our Twilled Dutch Weave Wire Cloth or Wire Filter Cloth, in which each wire passes over two and under two. With the exception that the warp wires are heavier than the shute wires. This type of weave is capable of supporting greater loads than the Dutch Weave, with finer openings than the Twilled Weave. It is used in applications where filtering of heavy material is necessary.

Double Crimp Wire Cloth

Both warp and shute wires are crimped at the point of intersection to keep the wires in position. The double crimp wire cloth wires are not crimped before weaving. The corrugation or depression that is crimped into both the warp and shute wires is a result of having a plain weave pattern calls for each shute wire to pass over and under successive rows of warp wires and vice versa, like interlacing fingers.

Inter-Crimp Wire Cloth

Woven Wire cloth with an extra crimp in both warp and fill wire. Both the warp and shute wires are crimped with extra crimps or corrugations between the points of intersection. This technique is usually required when weaving large openings with fine wires.

Lock Crimp Wire Cloth

A refinement of the pre-crimp technique. The crimping of the warp and shute wires is done in such a manner to actually pull the wires together at their point of intersection, offering further assurance of no wire movement.
