Slurry Vibrator Screen Mesh

Basic Info

Model No.: HHY-slurry

Material: Steel Wire, High Carbon Steel, Manganese Steel,stainless Steel

Application: Construction Wire Mesh, Protecting Mesh, Screen, Filter, Barbecue Wire Mesh, Fence Mesh, Decorative Mesh, Window Curtain, Cages, Other

Hole Shape: Square, Square,rectangular,slot,diamond,W,H,D

Weave Technique: Plain Weave

Weave Method: Other

Feature: Eco Friendly

Wire Diameter: Other

Color: Other

Packaging: Pallet

Certification: ASTM, ISO9001

More Wire Diameter Choice: 0.5mm-22mm

Colors: Any Can Pain Are Available

Additional Info

Packaging: pallet or as require

Productivity: 1X20' container/10days

Brand: HHY

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: 1X20' container/10days

Certificate: ISO9001:2008

HS Code: 73144900

Port: TIANJIN

Product Description

Slurry vibrator screen mesh

Huahaiyuan slurry vibrator screen mesh has a perfect finishing, uniform mesh, and heavy load bearing capacity. High carbon steel wire woven screen mesh, stainless steel slurry screen mesh, 65Mn vibrator screen mesh are all our representative products, they are different slurry vibrator screen mesh used for different materials filteration.

Weaving styple and hole shape -slurry vibrator screen mesh

According to different particles for sifted, workloading, and different apparatus, pls choose the correct weaving type and material and wire and hole size, edge type etc.

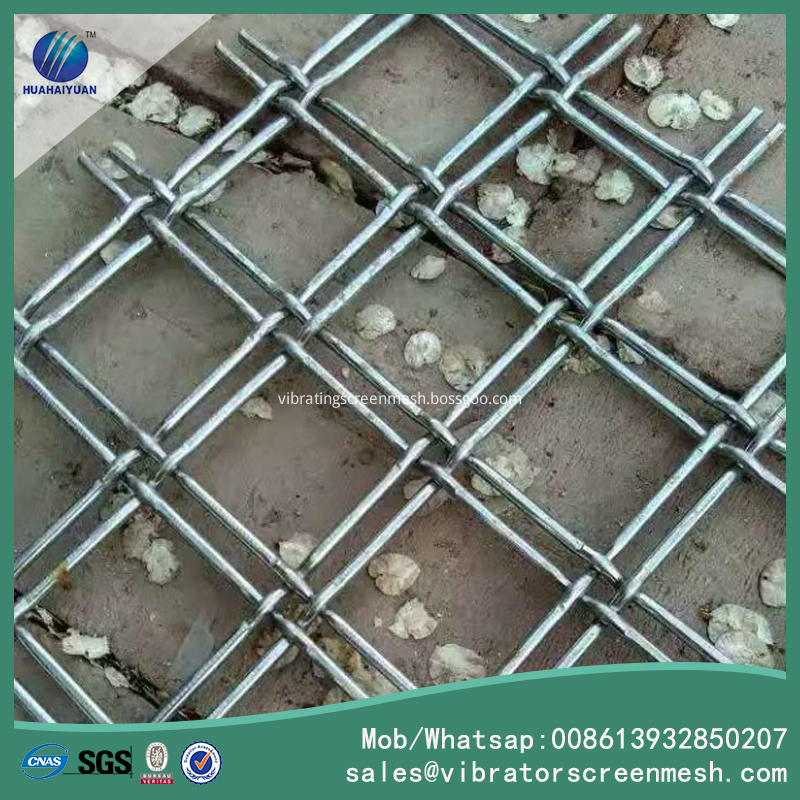

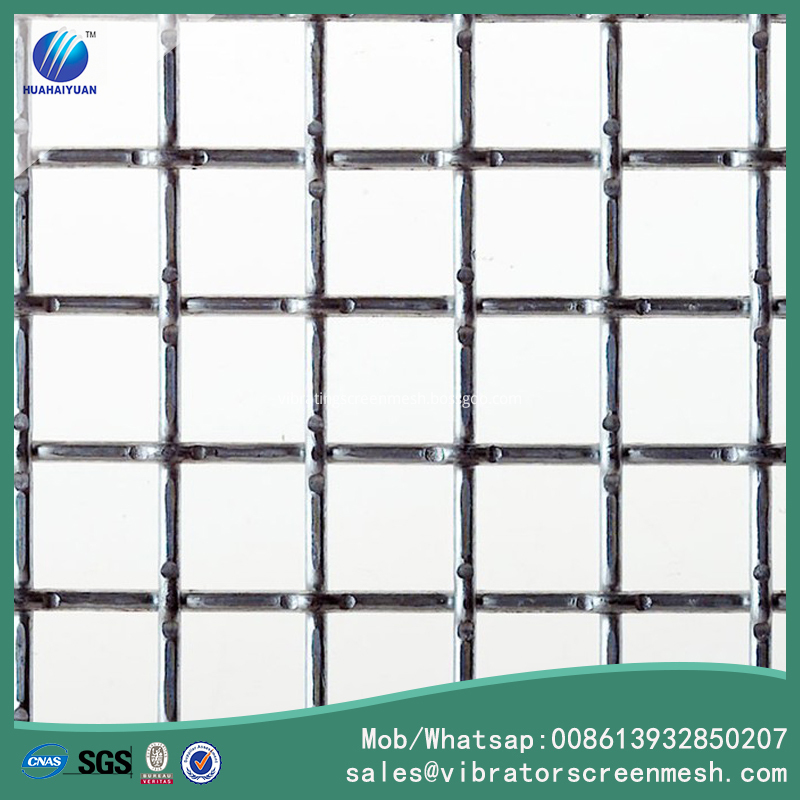

For Square hole shape: single crimp, double crimp, lock crimp and flat top crimp.

For slotted hole shape: oblong openings and triple shute.

Weaving style-slurry vibrator screen mesh

1. Coarse to medium-size particles: intermediate crimp, flat top crimp

2. Small to fine particles: plain weave, twilled weave, slotted openings

3. Sticky and/or cloggy objects: slotted openings, triple shute, diamond or W type or H type opening(self cleaning screen mesh type)

4. Very wet objects: wedge wire

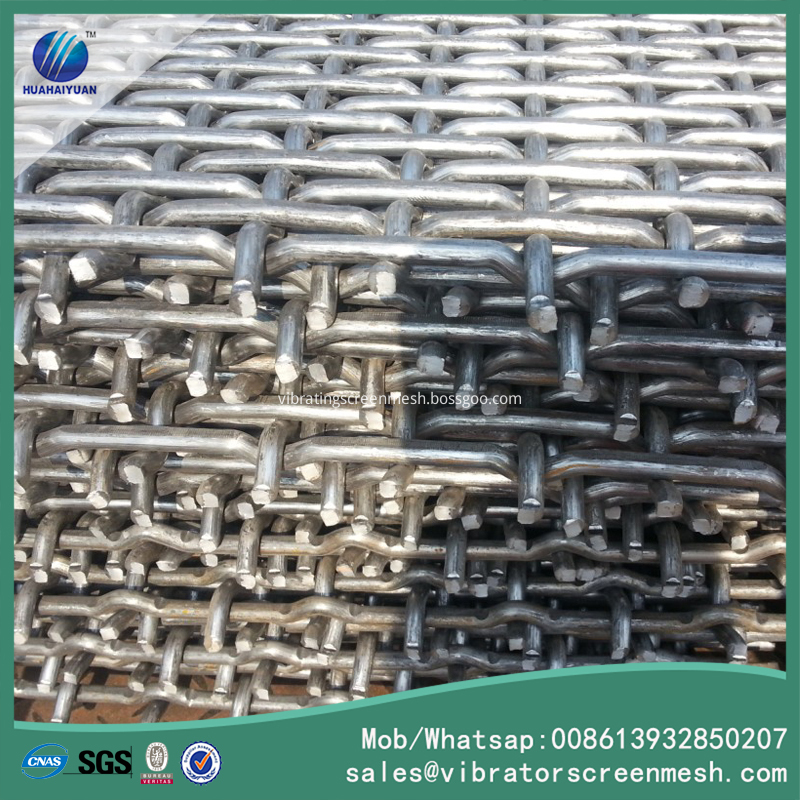

Flat top crimp-slurry vibrator screen mesh:

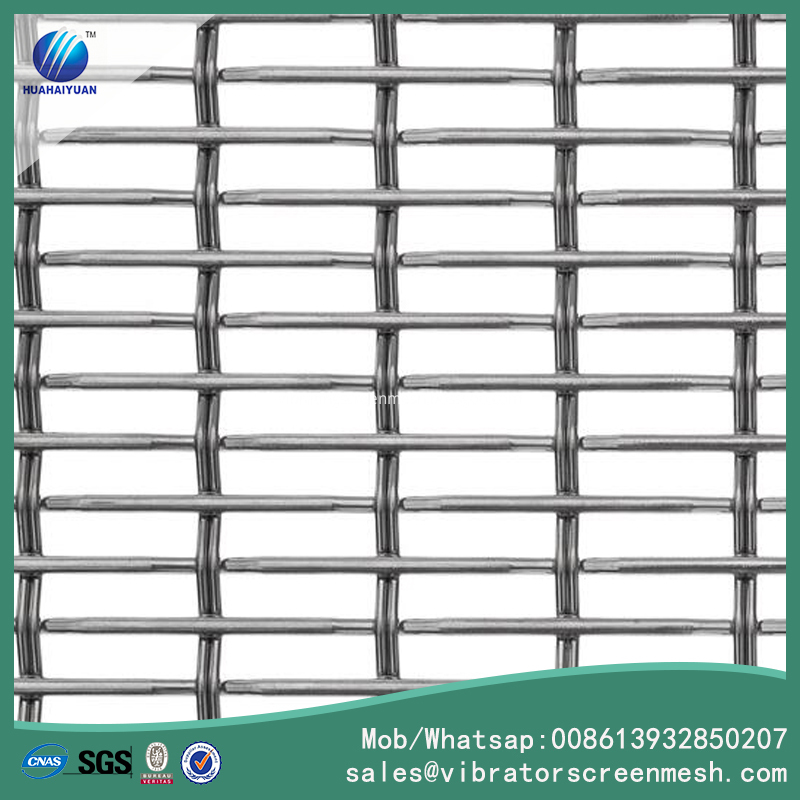

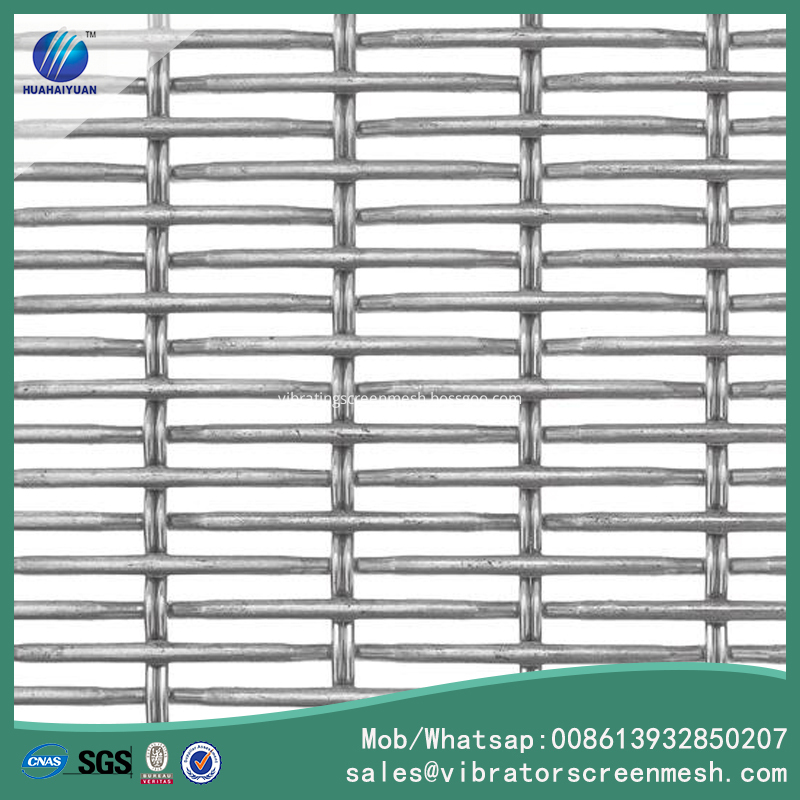

Triple Shute-slurry vibrator screen mesh:

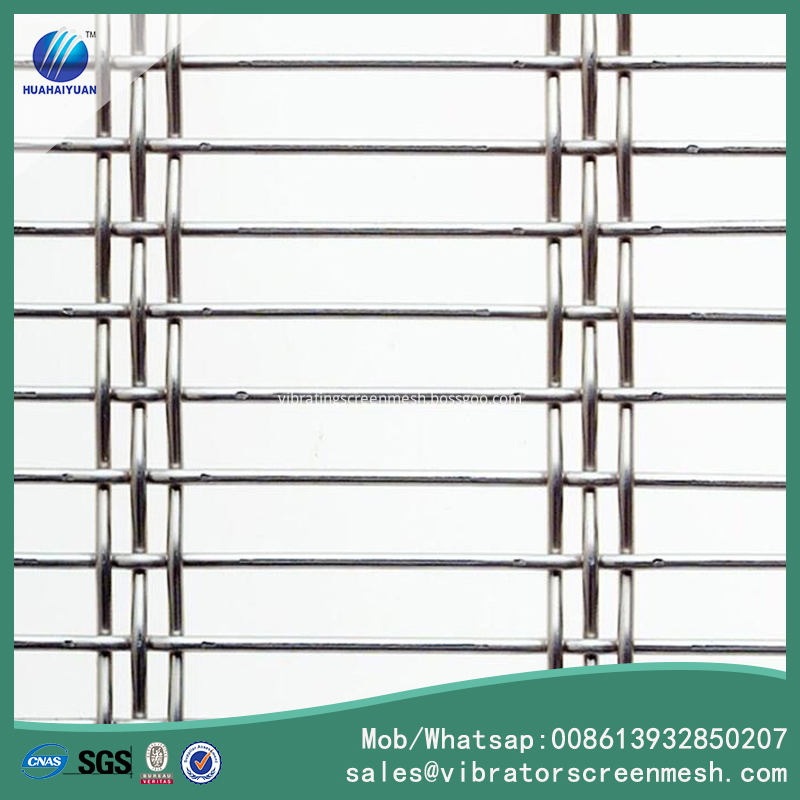

Oblong opening-slurry vibrator screen mesh:

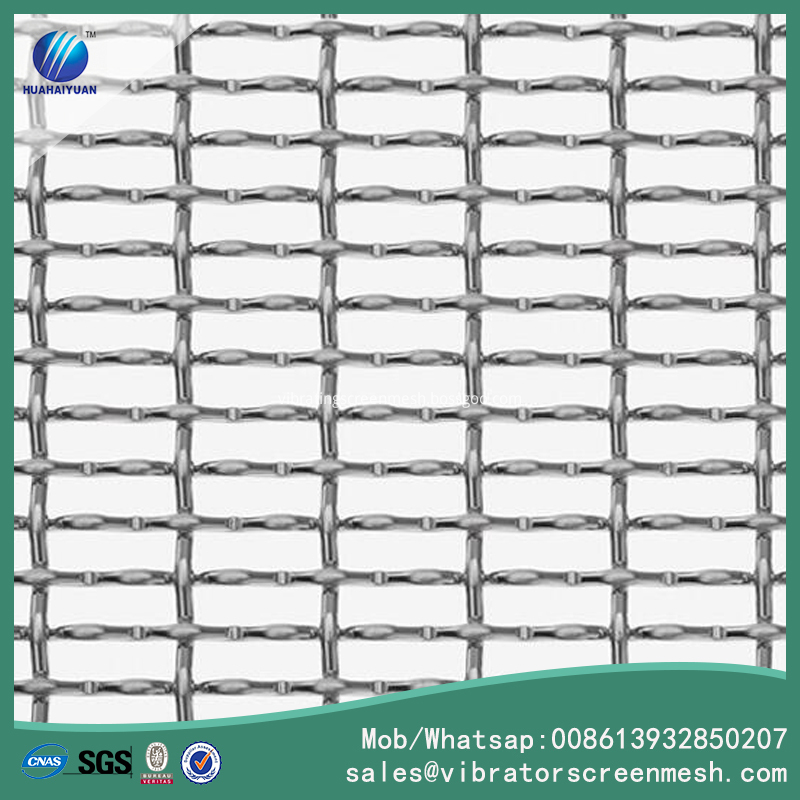

Self cleaning screen mesh-slurry vibrator screen mesh:

Material of screen mesh wire-slurry vibrator screen mesh:

when you choose a material, pls first take below several points into consideration.

1.High tensile strength sufficient to resist a secondary breakage due to vibration

2.Wearable due to abrasion with objects to be sifted

3.Corrosion resistance should also be taken into consideration

Popular material: iron, high carbon steel/hard steel/high tensile steel, stainless steel

Edge type we can supply:
