Sand Gravel Sieve Screen Mesh

Basic Info

Model No.: HHY-SG

Material: Steel Wire

Application: Construction Wire Mesh, Protecting Mesh, Screen, Filter, Barbecue Wire Mesh, Fence Mesh, Decorative Mesh, Window Curtain, Cages, Other

Hole Shape: Square

Weave Technique: Plain Weave

Weave Method: Other

Feature: Eco Friendly

Wire Diameter: Other

Color: Black

Packaging: Pallet

Certification: ASTM, ISO9001

More Wire Diameter Choice: 0.5mm-22mm

More Hole Shape Choice: Square, Rectangular, Slot, W,D,H,piano Types

Additional Info

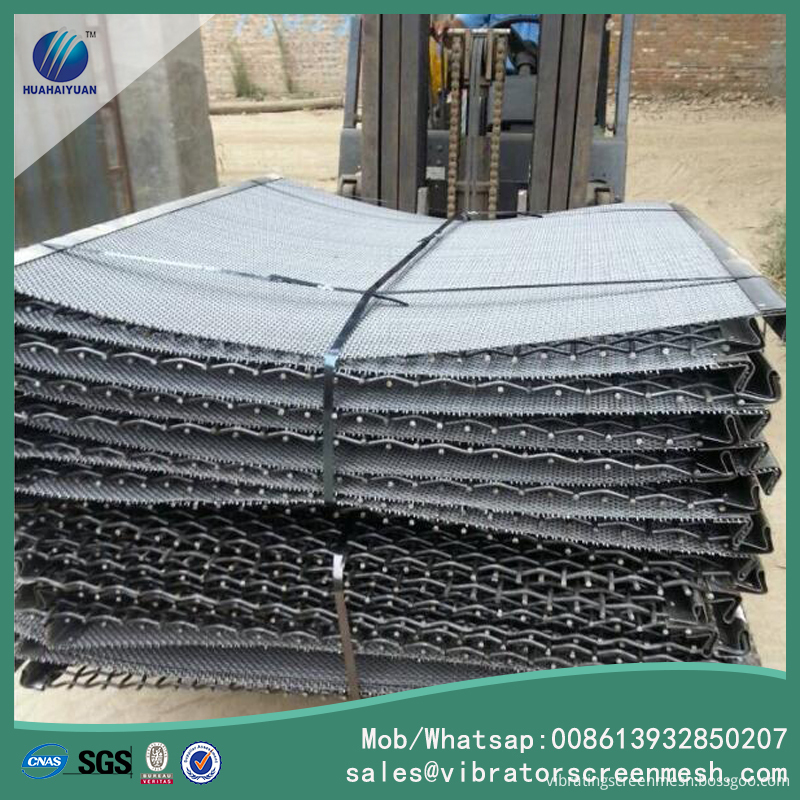

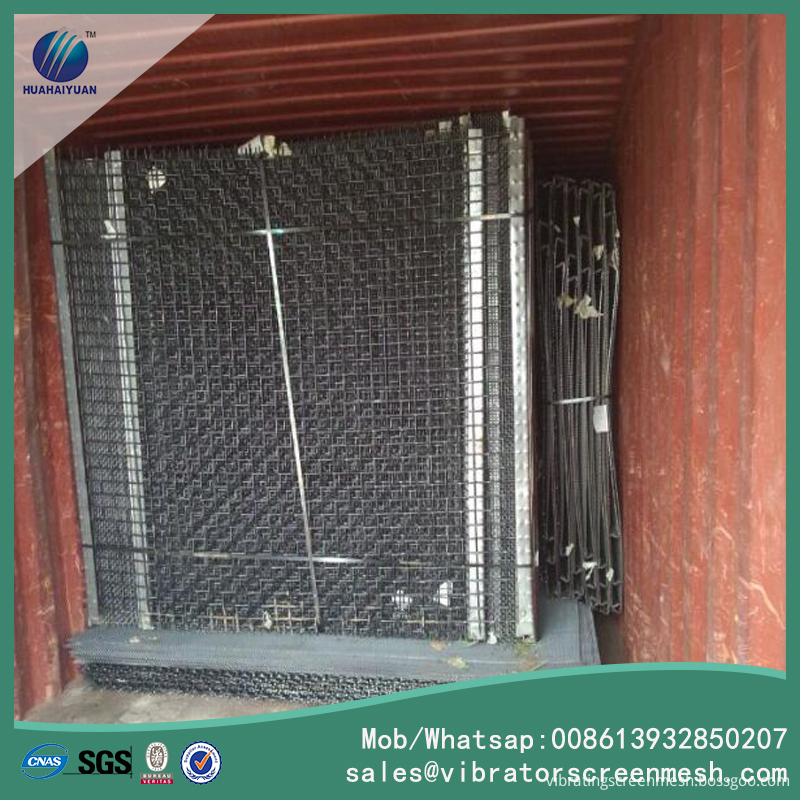

Packaging: pallet or as require

Productivity: 1X20' container/10days

Brand: HHY

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: 1X20' container/10days

Certificate: ISO9001:2008

HS Code: 73144900

Port: TIANJIN

Product Description

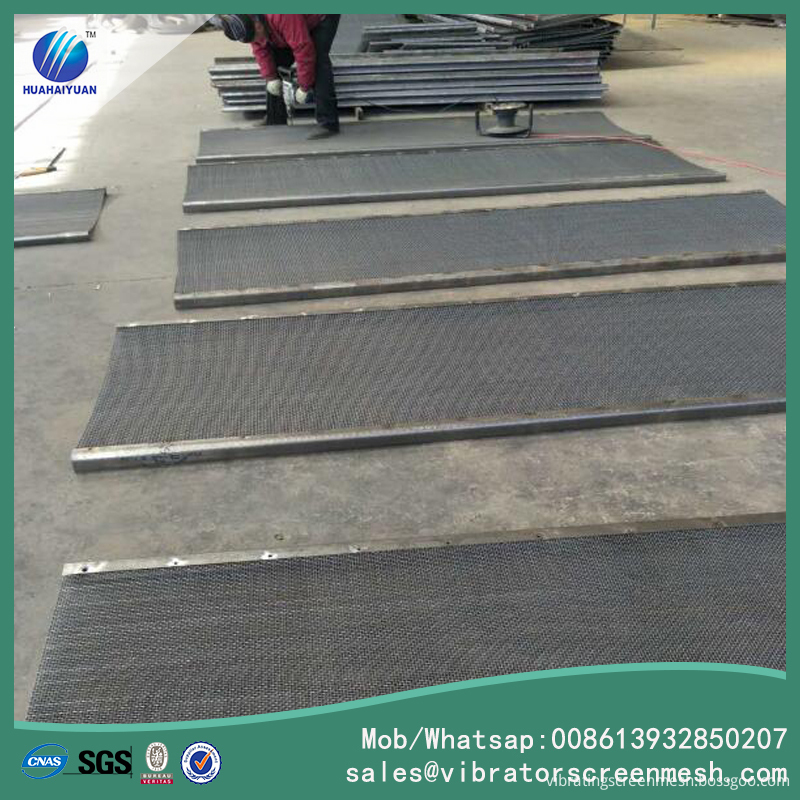

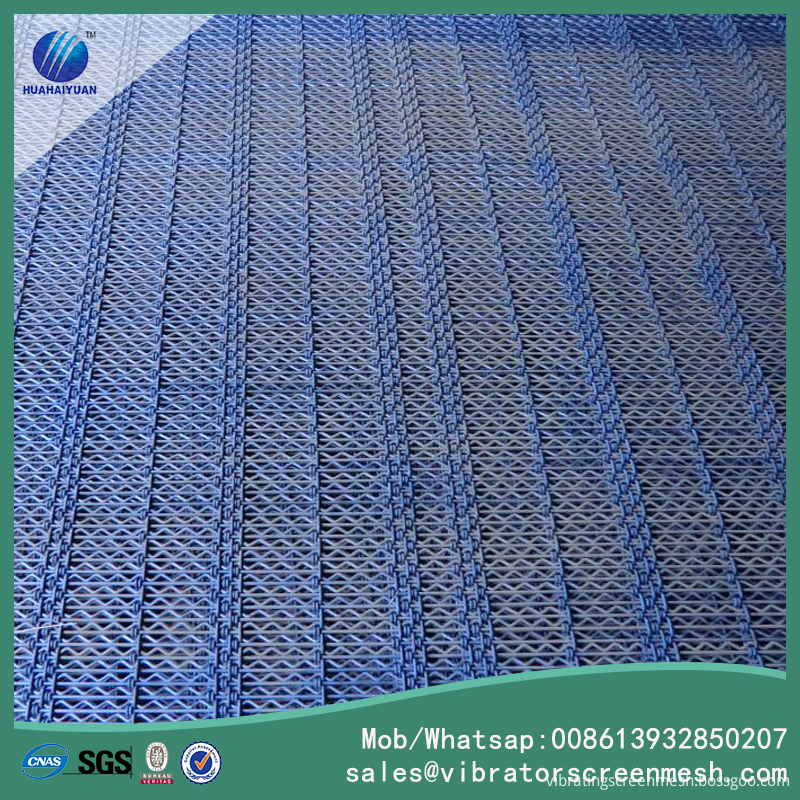

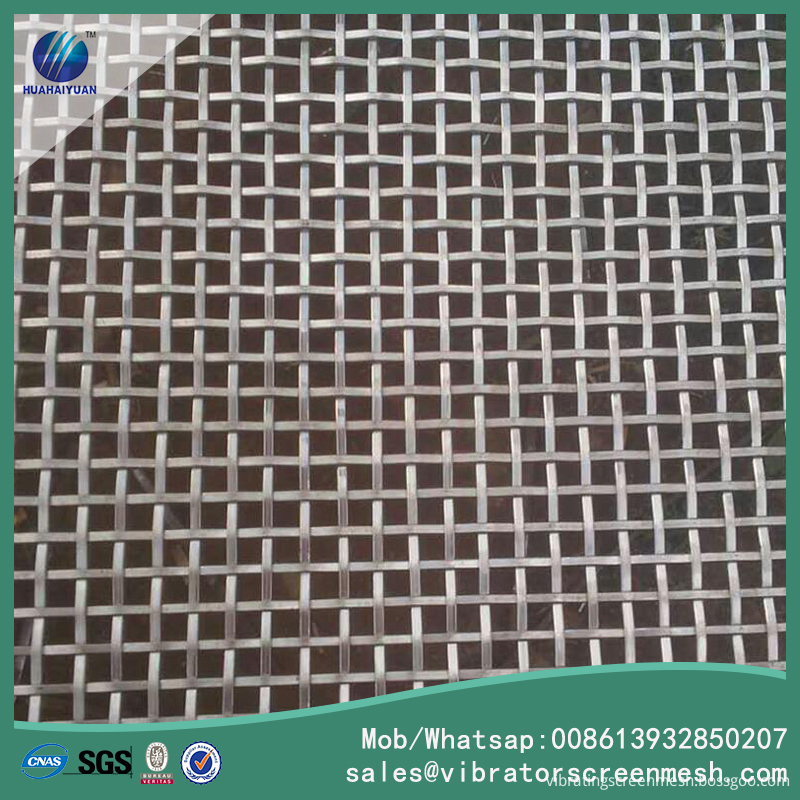

Sand gravel sieve screen mesh

Sand gravel sieve screen mesh is the mesh named sand & gravel mesh for quarry vibrating screen , crusher screen, other name is Mining Sand gravel sieve screen mesh, or we can also call it as mining screen sieve mesh. they are commonly used in the sand and gravel plant, mine, limestone, iron ore, granite, coal, aggregate and bluestone filter products. Material can be choosen from carbon steel, manganese steel and stainless steel, if your environment is corrosive, pls choose stainless steel with thicker wire type.

Sand gravel sieve screen mesh Specifications:

Material: iron wire, high carbon steel wire 45# commonly, manganese steel wire 65Mn, stainless steel wire 304, 316 etc.

Wire diameter: 1.5mm~22mm, like 2mm,3mm,4mm,6mm,7mm,8mm...12mm...18mm etc.

Aperture size: 4mm,5mm,8mm,10mm,12mm,16mm,20mm,22mm,32mm,40mm etc.

Panel size: 1500x2000mm, 1750x4500mm, 1750x3000mm etc.

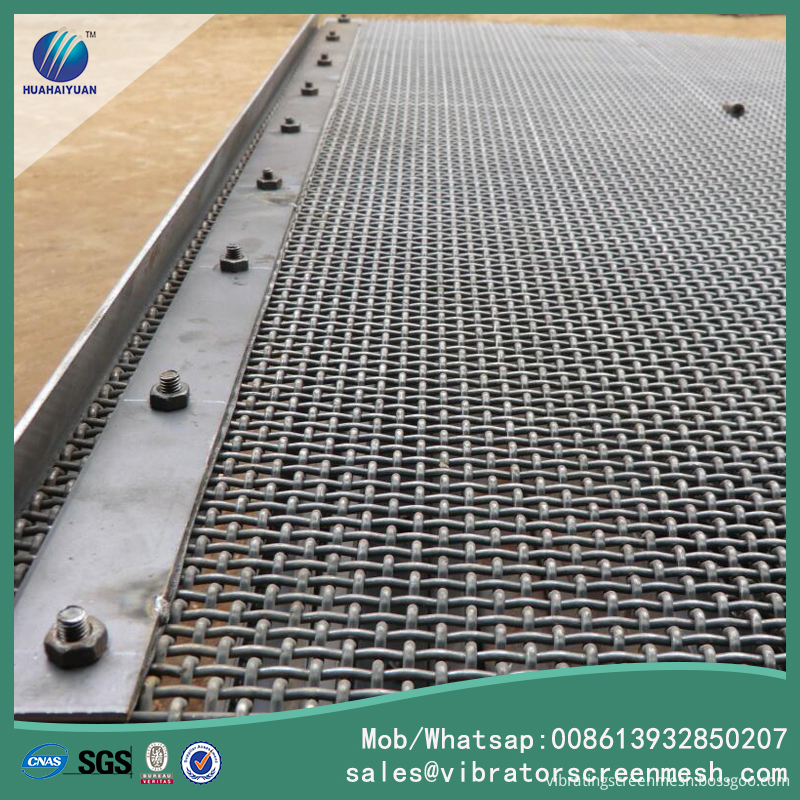

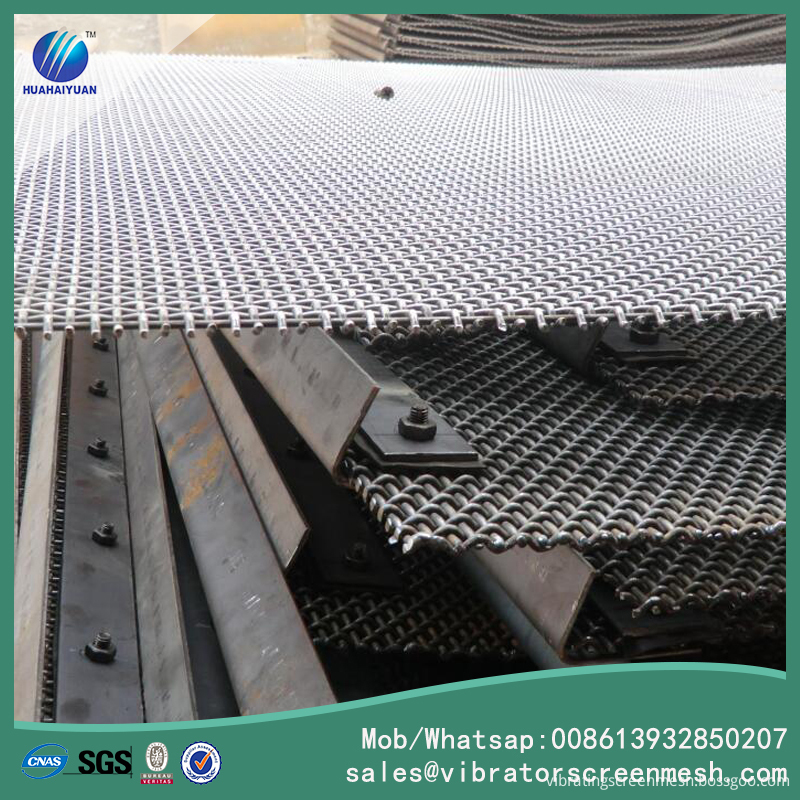

Edge type: flat panel, hook type, steel plate hook.

Sand gravel sieve screen mesh Characteristics:

High tensile, wearable, high frequency, uniform mesh, high open rate, prevent slippery, anti vibration, good elasticity and toughness, firm structure, long using life.

Sand gravel sieve screen mesh Edge Type:
