rockfall barrier fence export rockfall net

Basic Info

Model No.: HHY084

Type: RX-025 050 075

Additional Info

Packaging: in bulk

Productivity: 100000

Brand: huahaiyuan

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 1000000

Certificate: ISO9001:2008

HS Code: 73144900

Port: Xingang Tianjin

Product Description

rockfall barrier fence export rockfall net RX-025 rockfall netting rock fall fence barrier

Rockfall protective fence of the steel rope mesh is considered easy to install, also use declined the amount of the bolt and excavation to achieve the most rapid and easy installation of construction. All components of the system according to the standardized production, are installed on the construction site to the number of bolts. The installations mainly adopt like building block, so the installation personnels need only a small amount of conventional equipments, who can easily maintain and replace parts of the system.

1. rockfall barrie type :

RX-025  post high:2--5m wire rope mesh :8*250*250mm

RX-050  post high :2--7m wire rope mesh :8*200*200mm

RX-075  Post hihg :2--7m  wire rope mesh :8*150*150mm

the rockfall barriers and fences are composed of high strength wire grid mesh, the anchor, I-steel column, the drop-down anchor rope, the ring of energy dissipation, and the base of support rope from top to bottom, and other components.

3. Rockfall protective fences protect the formation of the regional slope, and prevent the collapse of the rock fall.

Steel rope consisted rockfall barriers defense system is flexible to intercept and strong enough to absorb and spread the rock, and energy dissipation of the ring net help the system's ability to further improve the impact resistance.

Rockfall protective fence for the energy from 250kj to 3000kj, and has been able to 5000kj up to a higher level of special protection.

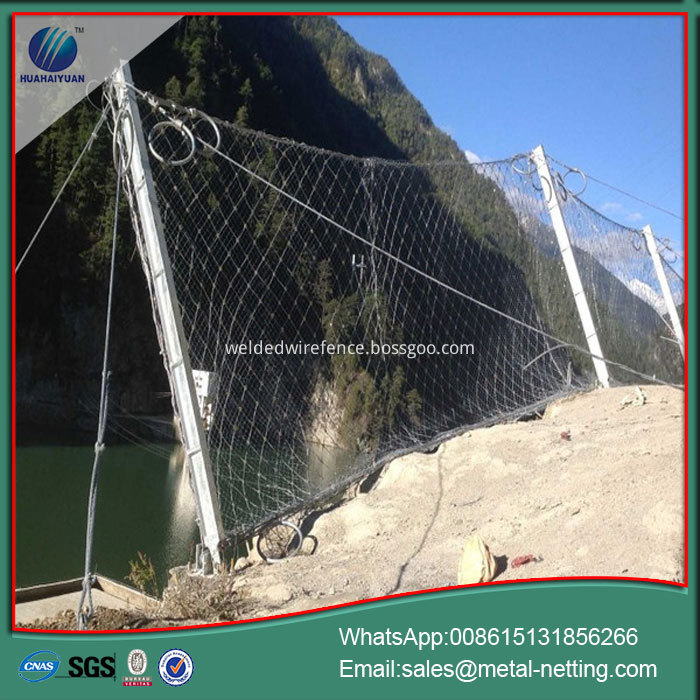

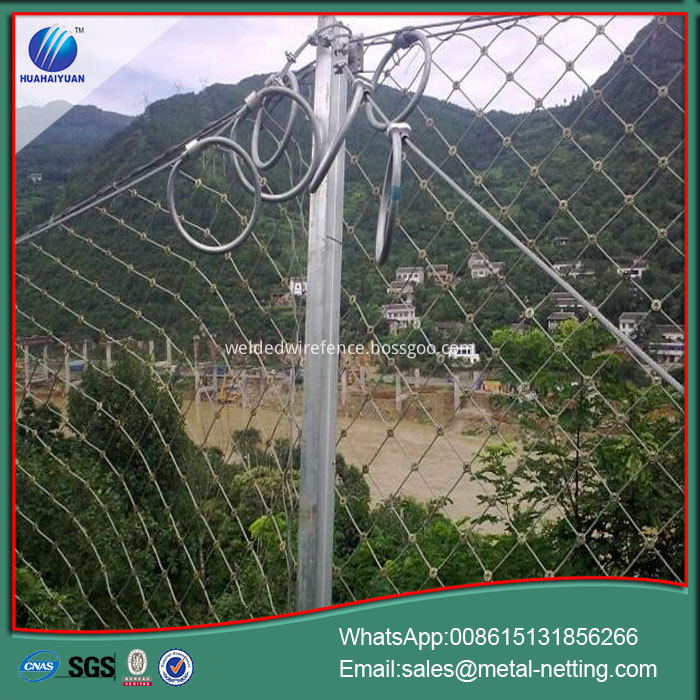

4. pictures for RX-025 Rockfall Netting Rock Fall Fence Barrier
