pvc coated gabion box gabion retaining wall

Basic Info

Model No.: HHY055

Application: Gabion Mesh, Gabions, Construction Wire Mesh

Usage: Road Building, Civil Engineering

Material: Galvanized Steel Wire

Hole Shape: Hexagonal

Technics: Woven

Surface Treatment: Galvanized, Pvc Coated Hot Dipped Galvanized

Size: 4m x 1m x 0.5m

Aperture: 80*100mm

Additional Info

Packaging: in package

Productivity: 10000

Brand: huahaiyuan

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 1000000

Certificate: ISO9001:2008

HS Code: 73144900

Port: Xingang Tianjin

Product Description

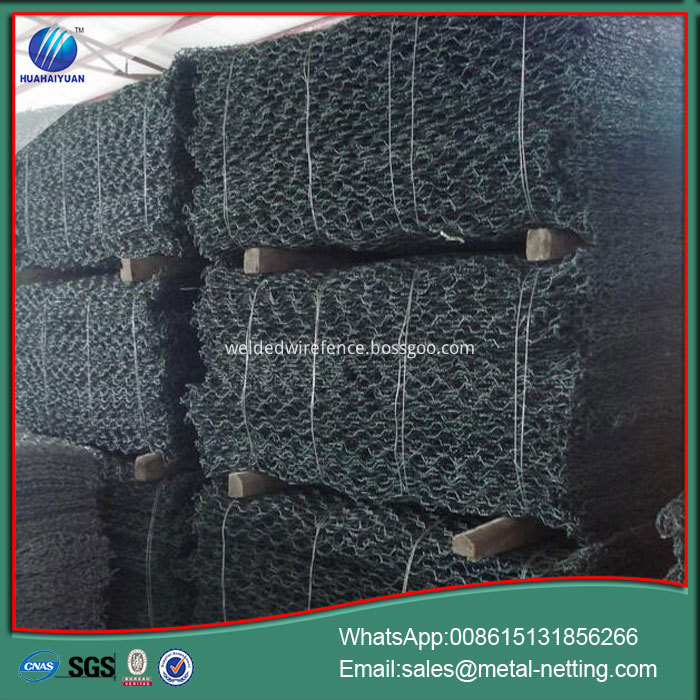

pvc coated gabion box gabion retaining wall galvanized gabion box

Gabion box is wire containers made of hexagonal wire netting. Wire diameter varies with the hexagonal netting. For gabion mesh with no pvc coating, the wire diameter ranges from 2.0mm to 4.0mm. For those PVC coated hexagonal wire netting, the outside diameter ranges from 3.0mm to 4.0mm. The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.

wire diameter: 2.0-4.0mm

mesh size: 60*80mm 80*100mm 100*120mm

Features of Gabion Box:

  .Economic

Just fill the stone into the gabions and seal it.

  .Simple installation

No special technology needed.

  .Weather proof under natural destroy, corrosion resistant.

No collapse even under big scope of deforming.

  .Sludge in the stones is good forplant growing.
