Mining vibrator screen mesh

Basic Info

Model No.: HHY-Mine

Type: Other

Function: High Frequency Vibrating Screen

Transmission Structure: Vibrating Screen

Usage: Mine Shaker, Experiments Shaker

Works: Other

Object: Ore

Shaft Number: Other

Running Track: Other

Supporting Device: Other

Warranty: 3 Years

Customized: Customized

Condition: New

Additional Info

Packaging: pallet or as require

Productivity: 1X20' container/10days

Brand: HHY

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: 1X20' container/10days

Certificate: ISO9001:2008

HS Code: 73144900

Port: TIANJIN

Product Description

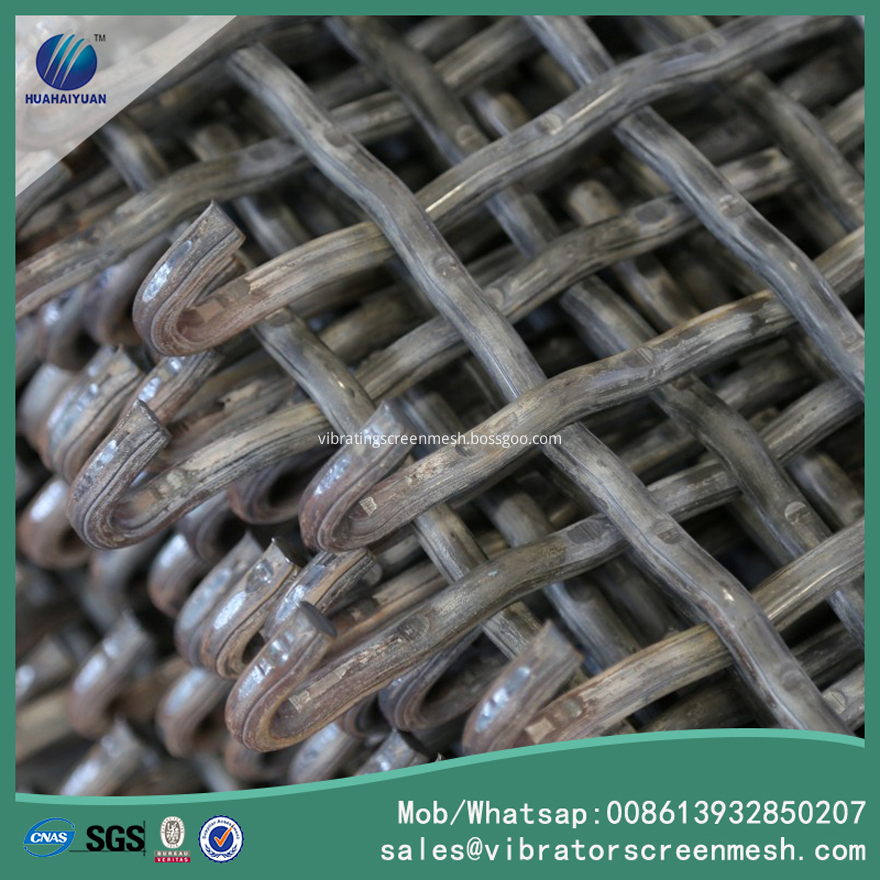

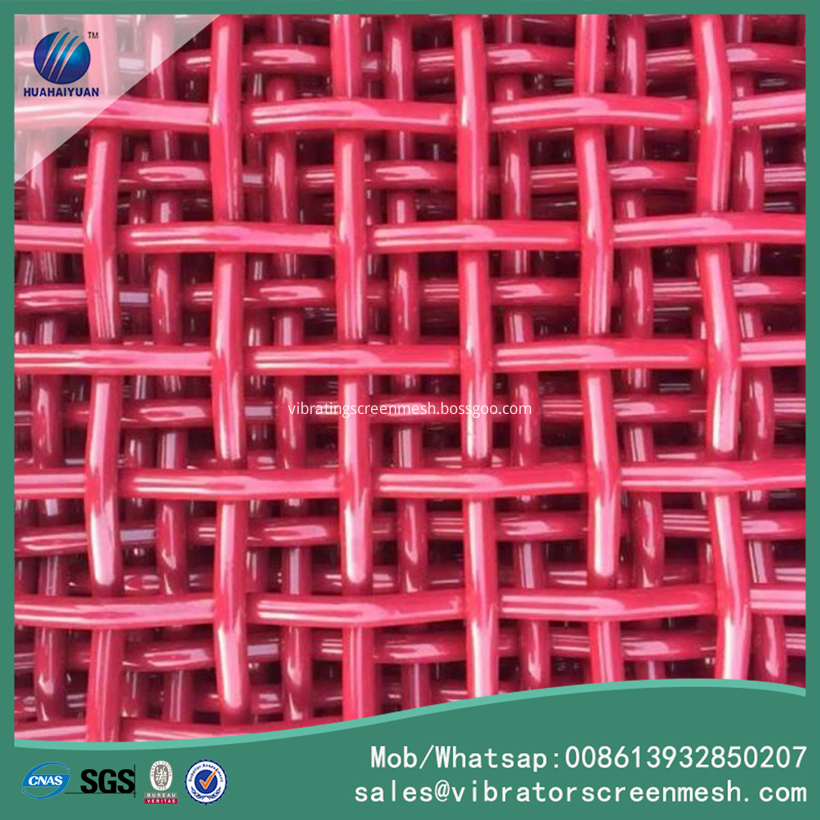

Mining vibrator screen mesh

Mining vibrator screen mesh also named vibrator screen mesh, mine sieve mesh. It should be installed on the vibrating screen, crusher screens, benificiation machine etc. Especially in the vibration situation, if it is no corrosivity, we can use the high carbon steel or the manganese steel, coz they are wearable and longer life, if it is corrosive, pls choose the stainless steel material such as SS304 slurry screen mesh, stainless steel sieve mesh, all can be customized.

Mining vibrator screen mesh weaving: crimps, double crimp, lock crimp, corrugated crimp.

Material: high tensile steel wire, manganese steel wire, stainless steel wire.

Friendly notes: if your environment is corrosion, we suggest you to use stainless steel and thick wire.

Mining screen sieve mesh type: light type, middle type, and heavy type.

Mesh size: 3mm, 5mm, 12mm, 19mm, 25mm, ...32mm, 40mm etc.

All sizes can be customized.

We can do panels type:

Flat panel: 1500x2000mm, 1750x4500mm, 1800x3000mm etc, all sizes can be customzied.

Hook panel: can be customized.

Plate hook type: 1760*2600mm, 1500*3000mm etc, sizes can be customzied.

Mining vibrator screen mesh usage: used in screen deck, quarrying scren, mining screen, screen wire for stone crusher ,classifying trammel, vibrating screen, road construction equipment, the asphaltum mix round equipment and the mine vibrating screens, chemical industry, pharmacy, machinery, protection, construction.

Mining vibrator screen mesh characteristics:

Flexible, wearable, anti-corrosion, longer life, high tensile, high work efficiency.

There are three types Mining vibrator screen mesh. Light types, middle type, and heavy types, these hole sizes for different wire diameter, according to the users` fact condition, choose different.

As following only showing some hole size and wire diameter compare. All the hole size and wire diameter can produce according to clients` requirements.
