highway noise barrier metal with PC panel noise barrier

Basic Info

Model No.: HHY095

Material: Metal Panel , Pc Panel

Additional Info

Packaging: in package

Productivity: 50000

Brand: huahaiyuan

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 1000000

Certificate: ISO9001:2008

HS Code: 73144900

Port: Xingang Tianjin

Product Description

highway noise barrier metal with PC panel noise barrier

Metal Sound Barrier Wall Base on the application environment: the traffic noise barriers, equipment noise attenuation noise barriers, factory noise barriers;

1. material: metal noise barriers,concrete noise barriers, PC noise barriers, etc;

Base on different application: rail noise barriers, highway noise barriers, urban landscope noise barriers, redetial area noise reduction noise barriers.

2. Structure of the sound barrier :

Sound barriers are made of the steel H beam and sound absorbing panels. Steel H beam is the main force components, it si fixed by bolts or welding on the road barrier wall or the side of the embeded steel plate. Sound absorbing panel are the main noise reduction component,it is ixed by high stength spring clip on the groove of the beam. Considering the environment the highway, railway road and subway, it is designed for open-air corrosion, easy transportation and installation, and long life.

3.use for noise barrier

Height of the sound barriers is also bettween 1m-5m. Covering the effective area, the noise reduction is 10-15dB(A)(125HZ-40000HZ,1/3 octave),up to 20dB(A). Generally the sound barriers height and distance is more bigger, the reduction effect is more better.

A. Good perfomance of acoustic insulation: the average acoustic insulation amound should not less than 35dB;

B. High sound absorption coeficient: the average sound absorption coeficient amount should not be less than 0.84.

sound barrier wall, noise barrier walls, noise barrier fence, highway noise barriers, railway noise barrier

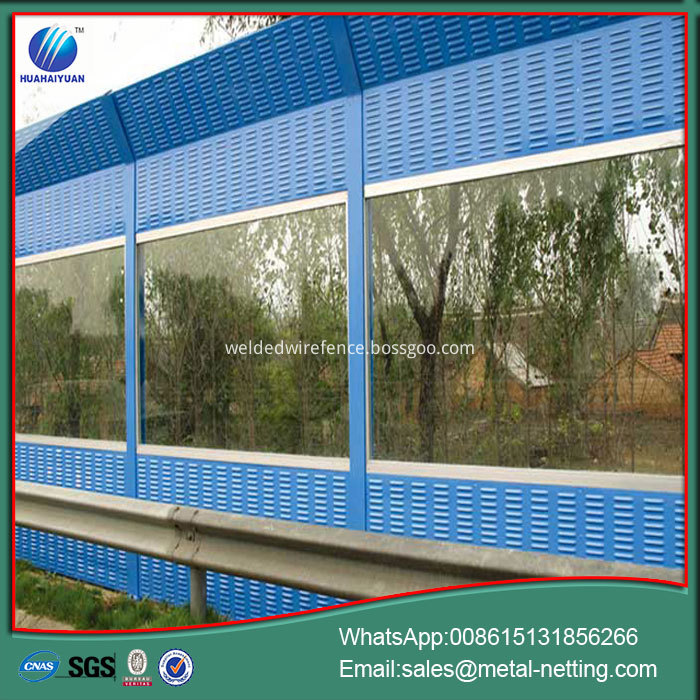

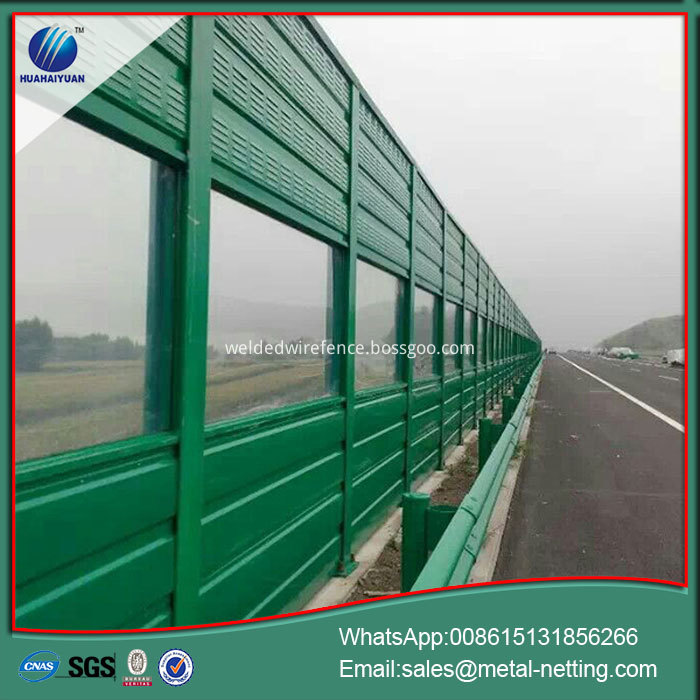

4. picture for noise barrier wall
